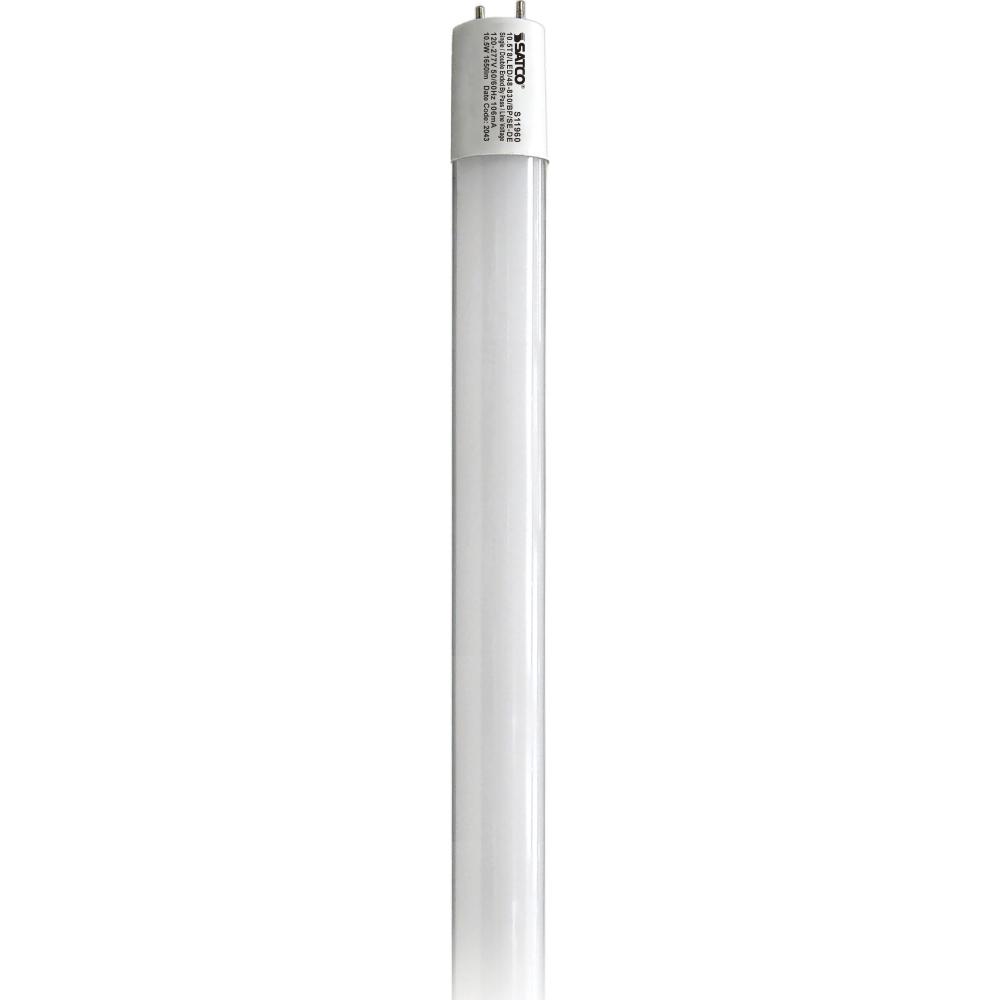

10.5 Watt T8 LED; 4Ft; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Type B; (LNK2D)
$9.00
Call For Price
Enlarge Image
Add to Cart
Description:
10.5 Watt T8 LED; 4Ft; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring
Availability:
  • Manufacturer has 1171 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.10"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K
right arrow Bulb Shape: T8
right arrow Diameter: 1.1
right arrow EA Length: 48
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 47.78
right arrow Lumens: 1700L
right arrow Shap Carton Width: 1.1
right arrow Ship Carton Height: 1.1
right arrow Ship Weight: 0.58
right arrow Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
right arrow Weight: 0.43
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 210
right arrow Bulb ANSI Base: G13
right arrow Bulb Base: Medium Bi Pin
right arrow Bulb Finish: Gloss White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.0336
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Warm White
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: PLU4L0QWWZZ2
right arrow DLC Primary Use: Internal Driver/Line Voltage (UL Type B) Lamps
right arrow Efficacy: 161.90 LPW
right arrow Enclosed Fixture Use: Yes
right arrow FCC Compliant: Yes
right arrow Feature 1: 4-ft length
right arrow Feature 10: 210-degree beam angle
right arrow Feature 2: 10.5W
right arrow Feature 3: 25W/28W/30W/32W Fluorescent Replacement
right arrow Feature 4: Ballast Bypass Type B
right arrow Feature 5: 120-277V Range Voltage
right arrow Feature 6: Damp location rated
right arrow Feature 7: Suitable for use in enclosed fixtures
right arrow Feature 8: rated for use in damp locations
right arrow Feature 9: Glass Tube
right arrow Flicker Free: Yes
right arrow Flourescent Equivalent: 25W/28W/30W/32W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 50W
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Lens Finish: Gloss White
right arrow Lens Material: Glass
right arrow Location Rating: Damp
right arrow Long Description: SATCO's S11960 LED Type B ballast bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. They are engineered for single or double-ended wiring options and will not light unless ballast is bypassed. Commercial venues, schools, h
right arrow Material: Glass
right arrow Nominal Length: 48
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 25
right arrow Pack Type: Sleeve
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 9
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO's Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps are available in 2', 3', and 4' lengths. They are engineered for single or double-ended wiring options and will not light unless ballast is b
right arrow SDS class: LED_Lamp
right arrow Short Description: 10.5T8/LED/48-830/BP/SE-DE
right arrow Specification Notes: Built-in shock resistant circuit - (not hot until both ends are installed)
right arrow Style: Utility
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Total Harmonic Distortion: 20%
right arrow Tube Guard Use: Yes
right arrow Wattage Selectable: No
right arrow Watts: 10.5W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 2501-3000
