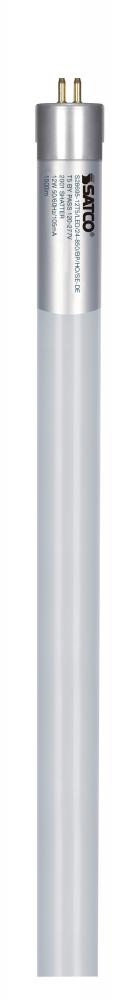

12 Watt T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 1500 Lumens; 120-277 Volt; (LRLP8)
$14.00
Call For Price
Enlarge Image
Add to Cart
Description:
12 Watt T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 1500 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring
Availability:
  • Manufacturer has 313 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 0.83"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T5
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Non-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 5000K
right arrow Bulb Shape: T5
right arrow Diameter: 0.83
right arrow EA Length: 22.5
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 22.5
right arrow Lumens: 1500L
right arrow Shap Carton Width: 0.85
right arrow Ship Carton Height: 0.85
right arrow Ship Weight: 0.2
right arrow Warranty: 5 Year Limited - T5 LED Bulbs - Ballast Bypass
right arrow Weight: 0.21
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 240
right arrow Bulb ANSI Base: G5
right arrow Bulb Base: Miniature Bi Pin
right arrow Bulb Finish: Frost
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.0094
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Natural Light
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: No
right arrow Efficacy: 125.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: Single or double ended wiring
right arrow Feature 2: All glass tube
right arrow Feature 3: PET-shatterproof coated
right arrow Feature 4: NSF certified
right arrow Feature 5: Damp location rating
right arrow Feature 6: 50/60 hertz electric power frequency
right arrow Feature 7: 50/60 hertz electric power frequency
right arrow Flourescent Equivalent: 24W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 50W
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IP Rating: IP20
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Lens: Yes
right arrow Lens Finish: Frost
right arrow Lens Material: Glass
right arrow Location Rating: Damp
right arrow Long Description: Satco's S28695 12-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ba
right arrow Material: Glass
right arrow Nominal Length: 24
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -25C (-13F) to +45C (+113F)
right arrow Order In Multiples Of: 25
right arrow Pack Type: Sleeve
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow RoHS Compliant: Yes
right arrow Romance Copy: Satco's 12-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ballast o
right arrow SDS class: LED_Lamp
right arrow Shatter Proof Text: PET Coated
right arrow Short Description: 12T5/LED/24-850/BP/HO/SE-DE
right arrow Style: Utility
right arrow Surge Protection: Built-in-surge protection - 0.7KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 20%
right arrow Wattage Selectable: No
right arrow Watts: 12W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Lumens: 1101-1600
right arrow Standard Kelvin: 4501-5000
right arrow Standard Wattage: 12w
