120/100/80 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended (LNRWK)
$158.00
Call For Price
Enlarge Image
Add to Cart
Description:

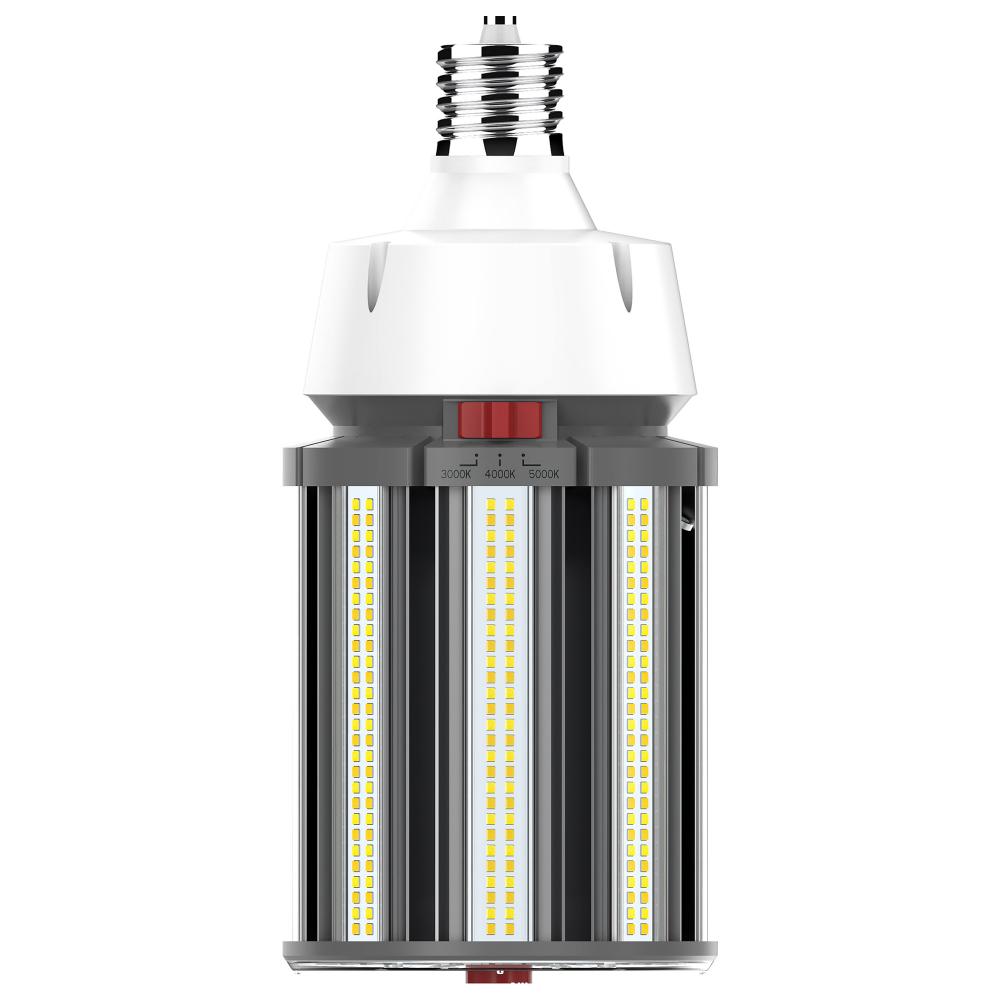

120/100/80 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Availability:
  • Manufacturer has 1538 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 5.11"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: HID Replacements
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Yes-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K/4000K/5000K
right arrow Bulb Shape: Corncob
right arrow Diameter: 5.11
right arrow EA Length: 12.99
right arrow Harmonized Codes: 8539.52.0091
right arrow Length: 11.33
right arrow Lumens: 16800L/14000L/11200L
right arrow Shap Carton Width: 5.51
right arrow Ship Carton Height: 5.51
right arrow Ship Weight: 4.07
right arrow Warranty: 5 Year Limited - Hi-Pro
right arrow Weight: 3.48
right arrow Additional Info: Power selectable
right arrow B.U. G. Rating: B3-U5-G5
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 300
right arrow Bulb ANSI Base: EX39
right arrow Bulb Base: Mogul Extended
right arrow Bulb Finish: White
right arrow Burning Position: Base Up or Down
right arrow Carton Cubic Feet: 0.2282
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Warm to Cool White
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Function: Only dimmable through wattage selection switch on lamp
right arrow Dimming Type: Step Dimming
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: S-52OTYR
right arrow DLC Primary Use: Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
right arrow Efficacy: 140.00/140.00/140.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: CCT Selectable-3000K, 4000K, 5000K
right arrow Feature 2: Wattage Selectable
right arrow Feature 3: Enclosed Fixture Rated
right arrow Feature 4: Advanced Thermal Management
right arrow Feature 5: Damp Location Rated
right arrow Feature 6: 4KV Built in Surge Protection
right arrow Feature 7: Rated for 50,000 hours of use
right arrow HID Equivalent: 600W/400W/320W
right arrow Housing Color: Dark Gray
right arrow Incandescent Equivalent: 1000W/600W/500W
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp Filament: LED
right arrow Lens Material: Plastic
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S23145 wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light
right arrow Material: Plastic (PS)
right arrow Minimum Compartment Size: Length: 9.85 in. Width: 9.85 in. Height: 12.60 in.
right arrow NSF Approved: No
right arrow Operating Frequency: 50-60Hz
right arrow Operating Temp: -40C (-40F) to +60C (+140F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 11
right arrow RoHS Compliant: Yes
right arrow Romance Copy: The newest generation of SATCO NUVO's popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp
right arrow SDS class: LED_Lamp
right arrow Short Description: 120W/LED/CCT/100-277V/EX39
right arrow Style: Contemporary
right arrow Surge Protection: Built-in surge protection - 4KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 13.90%
right arrow Wattage Selectable: Yes
right arrow Watts: 120W/100W/80W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Style: Traditional
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 3001-3500
right arrow Standard Wattage: 100w
