13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1800 Lumens; 3000K; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring
Sub-Category:
LED T8 U Bend
Harmonized Codes:
8539.52.0051
Warranty:
5 Year Limited - T8 LED Bulbs
Additional Info:
Replaces FB31T8/U1
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Burning Position:
Universal
Carton Cubic Feet:
0.0451
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White
DLC Classification:
Standard
DLC ID:
PL9V4YUGHT8B; PLU3DBV5TZQG
DLC Primary Use:
Replacement Lamps (plug and play) (UL Type A); Dual Mode Internal Driver (UL Type A and Type B)
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
Feature 1:
MOL: 22.59 inches, MOD: 1.00 inch
Feature 2:
Superior 80 CRI light quality, 1800 lumens, 3000K warm white light, with a 160 degree beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp Location Rated
Feature 5:
13 watt LED replaces 31 watt fluorescent
Feature 6:
Frost finished U-bend plastic bulb with plastic housing
Feature 7:
DLC Certified and qualifies for rebates where available
Feature 8:
5 Year Limited Warranty
Flourescent Equivalent:
31W
Incandescent Equivalent:
50W
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Lens Material:
Plastic (PS)
Long Description:

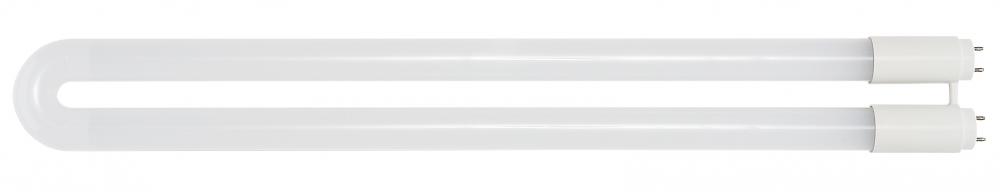

SATCO|NUVO's S18450 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spa
NSF Approved:
ETL Sanitation listed (conforms to NSF)
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Romance Copy:
SATCO|NUVO's 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spaces, th
Short Description:
13T8/U1-G13/LED/830/DUAL
Total Harmonic Distortion:
20%
