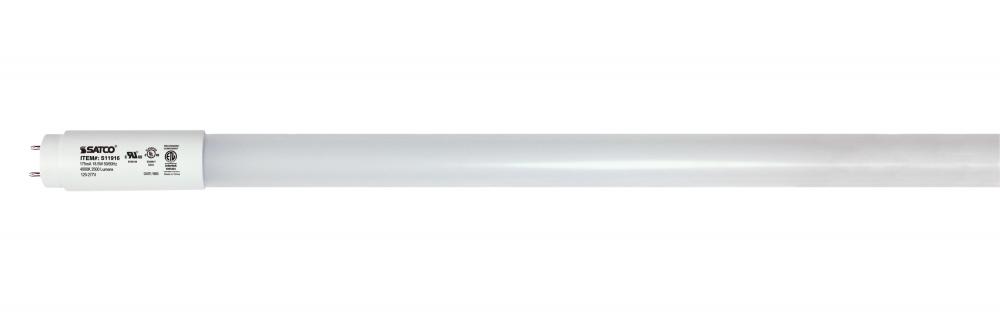

18.5 Watt T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; (LNK15)
$13.00
Call For Price
Enlarge Image
Add to Cart
Description:
18.5 Watt T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring
Availability:
  • Manufacturer availability unknown.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.00"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 4000K
right arrow Bulb Shape: T8
right arrow Diameter: 1
right arrow EA Length: 48
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 47.78
right arrow Lumens: 2500L
right arrow Shap Carton Width: 7.56
right arrow Ship Carton Height: 4.92
right arrow Ship Weight: 0.85
right arrow Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
right arrow Weight: 0.49
right arrow Additional Info: Installation protection - will not light if ballast is not bypassed.
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
right arrow Beam Spread: 180
right arrow Bulb ANSI Base: G13
right arrow Bulb Base: Medium Bi Pin
right arrow Bulb Finish: Frost
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 1.0332
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Cool White
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: PLA9OZCCPT5Z
right arrow DLC Primary Use: Internal Driver/Line Voltage (UL Type B) Lamps
right arrow Efficacy: 135.14 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: Cool white light
right arrow Feature 2: Damp rated for indoor use
right arrow Feature 3: Enclosed Rated Lamp
right arrow Feature 4: L:48.00 D:1.00
right arrow Feature 5: T8, Frosted Finish
right arrow Feature 6: Flicker Free - Less than 2%
right arrow Flicker Free: Yes
right arrow Flourescent Equivalent: 32W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 90W
right arrow Installation Notes: Not for use in vapor tight fixtures. Two Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Lens: Yes
right arrow Lens Finish: Frost
right arrow Lens Material: Glass
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S11916 18.5-watt T8 LED frosted tubular bulb offers cool white light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproo
right arrow Material: Glass
right arrow Nominal Length: 48
right arrow NSF Approved: ETL Sanitation listed (conforms to NSF)
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 25
right arrow Pack Type: Sleeve
right arrow Power Factor: 0.92
right arrow Quantity In Pack: 1
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's 18.5-watt T8 LED frosted tubular bulb offers cool white light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproof prote
right arrow SDS class: LED_Lamp
right arrow Shatter Proof Text: PET Coated
right arrow Short Description: 18.5T8/LED/48-840/LF/BP
right arrow Style: Utility
right arrow Surge Protection: Built-in-surge protection - 0.7KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Total Harmonic Distortion: 20%
right arrow Wattage Selectable: No
right arrow Watts: 18.5W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 3501-4000
