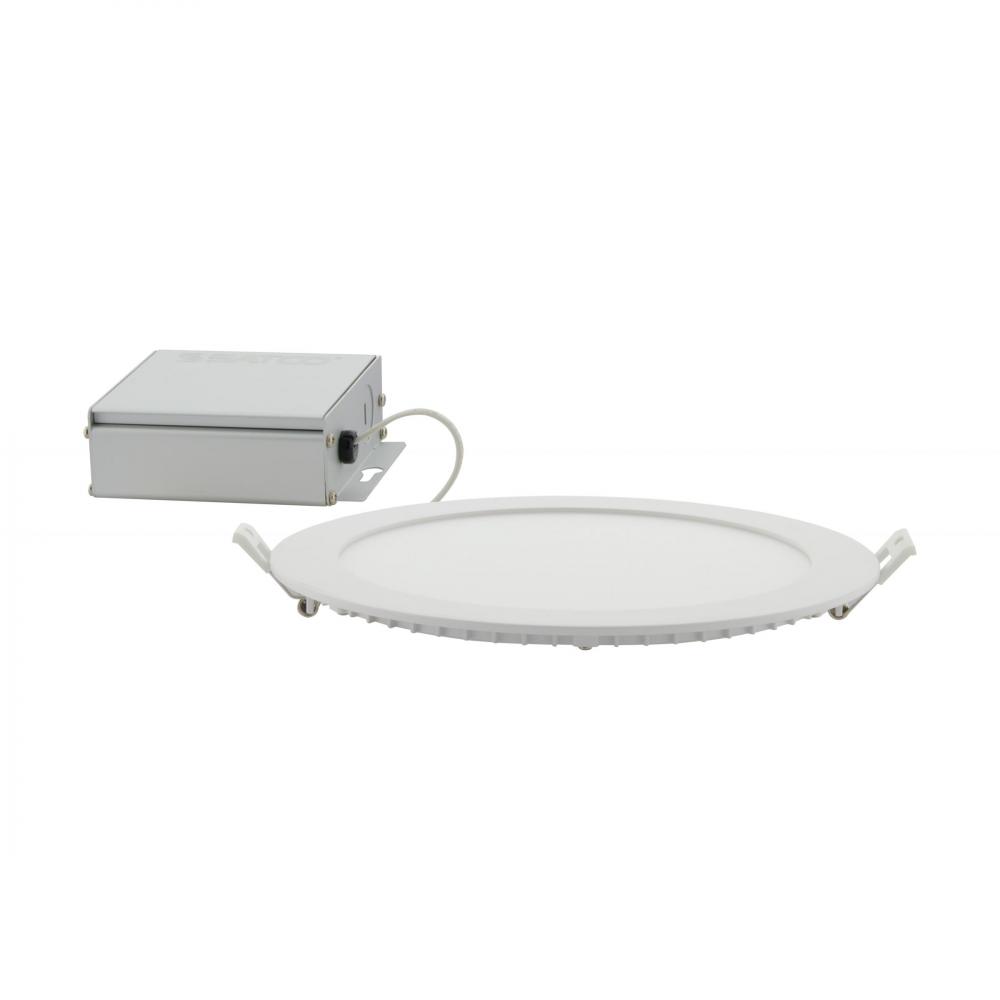

24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Round; (X3N1T)
$48.00
Call For Price
Enlarge Image
Add to Cart
Description:
24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Round; Remote Driver
Availability:
  • Manufacturer has 1231 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 0.90"
right arrow Width: 8.86"
Additional Details:
right arrow Finish: White
right arrow Category: Recessed
right arrow Sub Category: Direct Wire
right arrow Style: Utility
right arrow Additional Info: Candlepower: 550
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: Warm to Cool White
right arrow Bulb Shape: Integrated LED
right arrow Bulb Type: LED
right arrow Diameter: 8.86
right arrow Dimmable: Yes-Dimmable
right arrow Harmonized Codes: 9405.11.6010
right arrow Lumens: 2000L
right arrow Ship Carton Height: 9.41
right arrow Ship Carton Length: 9.41
right arrow Ship Carton Width: 1.81
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Air Tight: Yes
right arrow Amps: 0.200A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Beam Spread: 108
right arrow CA Prop-65: Lead
right arrow Can Size: 8 in.
right arrow Candle Power: 550
right arrow Carton Cubic Feet: 0.0928
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: California T24 2016 - 2022 JA8 Listed
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: California T24 Listed
right arrow Ceiling Aperture: 8.11 in. Cutout
right arrow Clearance Height: 2
right arrow Connection: Direct Wired
right arrow Country Of Origin: Vietnam
right arrow CRI: 90+
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimming Type: Forward Phase or Reverse Phase or Phase Selectable
right arrow Efficacy: 83.33 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: ColorQuick CCT Selectable
right arrow Feature 2: 90 CRI
right arrow Feature 3: Wet Location Rated
right arrow Feature 4: Dimmable
right arrow Feature 5: IC Rated
right arrow Feature 6: Air Tight Rated
right arrow Feature 7: Title 24 Compliant
right arrow Feature 8: 108-Degree Beam Angle
right arrow Feature 9: 120V
right arrow Finish Family: White
right arrow Fixture shape: Round
right arrow Has Driver: Yes
right arrow IC Rated: Yes
right arrow Incandescent Equivalent: 85W
right arrow Indoor Outdoor: Indoor
right arrow IP Rating: IP20
right arrow JA8 Compliant: Yes
right arrow Lens Finish: Frost
right arrow Lens Material: Poly methyl methacrylate (PMMA)
right arrow Long Description: SATCO|NUVO's S11828 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light.
right arrow Material: Aluminum
right arrow Max Drywall Thickness: 1/2 in.
right arrow Mounting Procedure: Ceiling
right arrow Operating Frequency: 60Hz
right arrow Operating Temprature: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 61
right arrow Rec Spacing Between Fixtures: 6 ft. to 8 ft.
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO|NUVO's LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A va
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Lamp
right arrow Short Description: 24WLED/DW/EL/8/CCT-SEL/RND/RD
right arrow Sloped Ceiling Compatible: No
right arrow Specification Notes: Lumens (L) vary with color temperature (K): 2700K 1850L / 3000K 1950L / 3500K 2050L / 4000K 2050L / 5000K 2000L
right arrow Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: Yes
right arrow Total Harmonic Distortion: <20%
right arrow Trim Color: White
right arrow Trim Material: Aluminum
right arrow Wattage Selectable: No
right arrow Weight Lb.: 1.57
right arrow Standard Category: Recessed Ltg.
right arrow Standard Subcategory: Other Recessed Ltg.
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Option: LED , Prop 65 prop65.png
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 4001-4500
