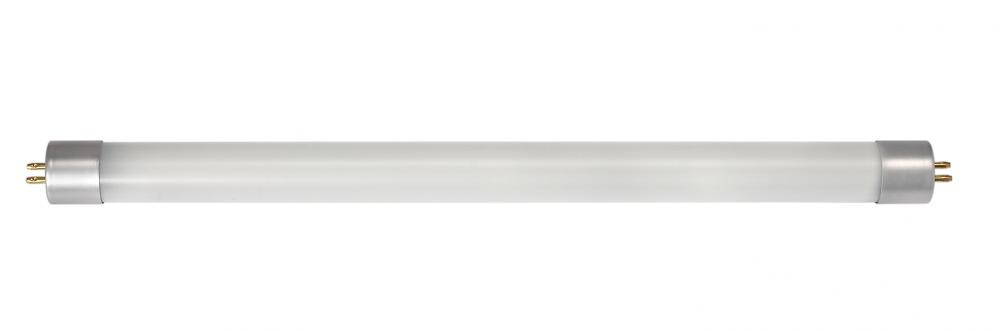

4 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring
Bulb Dimmable:
Non-Dimmable
Harmonized Codes:
8539.52.0051
Warranty:
5 Year Limited - T5 LED Bulbs - Ballast Bypass
Additional Info:
Replaces F8T5/WW lamps
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
No ballast or external driver required
Bulb Base:
Miniature Bi Pin
Burning Position:
Universal
Carton Cubic Feet:
0.0056
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
Feature 1:
MOL: 11.91 inches, MOD: 0.83 inches
Feature 2:
Superior 82 CRI light quality, 400 lumens, 3000K warm white light, with a 240 degree beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp Location Rated
Feature 5:
8 watt fluorescent equivalent
Feature 6:
Frost finished linear bulb
Feature 7:
LED energy efficient fixture
Feature 8:
5 Year Limited Warranty
Flourescent Equivalent:
8W
Incandescent Equivalent:
25W
Installation Notes:
Direct wire 120-277V line voltage; Double ended wiring
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Long Description:
Satco's S11904 4 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, the frosted bulb has a temperature of 3000 ke
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Romance Copy:
Satco's 4 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, the frosted bulb has a temperature of 3000 kelvins a
Shatter Proof Text:
PET Coated
Short Description:
4W/LED/T5/830/BP
Total Harmonic Distortion:
20%
