90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable Beam Angle; Type B Ballast (LVMD4)
$159.00
Call For Price
Enlarge Image
Add to Cart
Description:

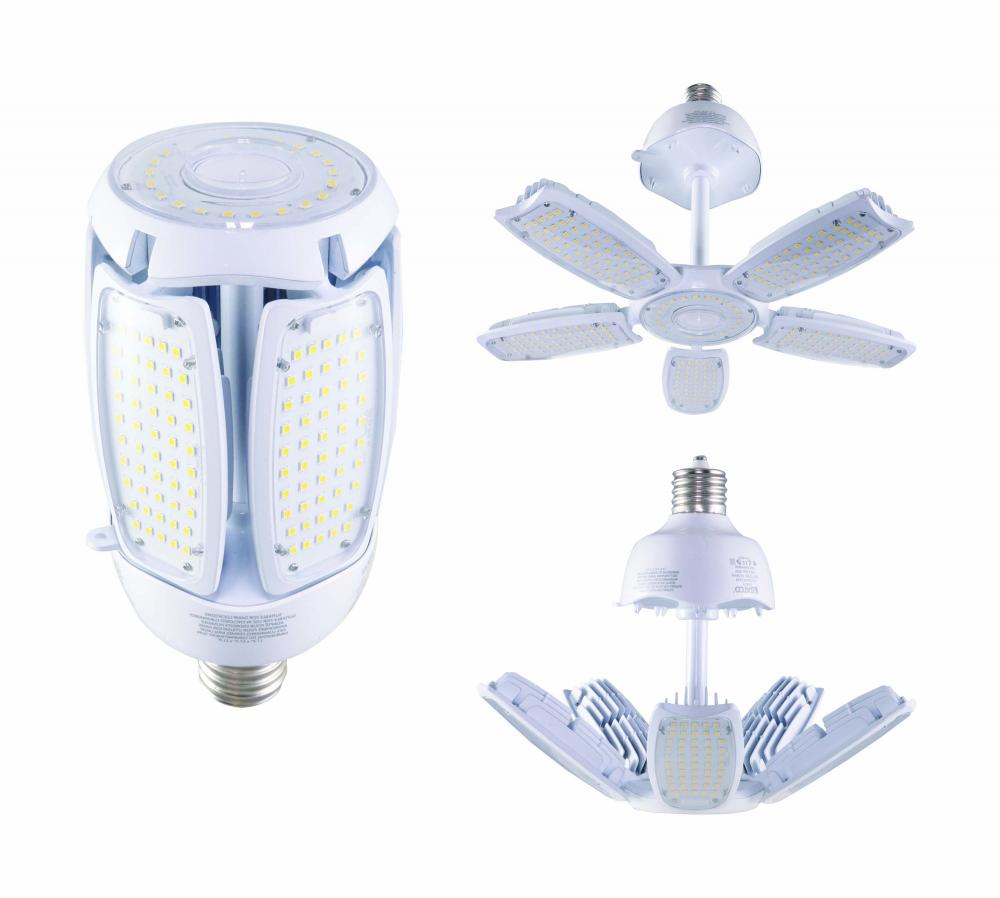

90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable Beam Angle; Type B Ballast Bypass;100-277 Volt
Availability:
  • Manufacturer availability unknown.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 4.41"
Additional Details:
right arrow Finish Family: No Finish
right arrow Category: LED
right arrow Sub-Category: HID Replacements
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Non-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 5000K
right arrow Bulb Shape: Corncob
right arrow Diameter: 4.41
right arrow EA Length: 5.51
right arrow Harmonized Codes: 8539.52.0091
right arrow Length: 9.84
right arrow Lumens: 12600L
right arrow Shap Carton Width: 5.51
right arrow Ship Carton Height: 11.61
right arrow Ship Weight: 4.47
right arrow Warranty: 5 Year Limited - Hi-Pro
right arrow Weight: 3.48
right arrow Additional Info: PIR Sensor available as an accessory
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 120/150/260
right arrow Bulb ANSI Base: EX39
right arrow Bulb Base: Mogul Extended
right arrow Bulb Finish: Clear
right arrow Burning Position: Base Up or Down
right arrow Carton Cubic Feet: 0.204
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Natural Light
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: No
right arrow Efficacy: 140.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: Greater Efficiency
right arrow Feature 2: Improved Heat Dissipation
right arrow Feature 3: Built-In 4kv Surge Protection
right arrow Feature 4: Multiple Beam Angle Options
right arrow Feature 5: Port For Motion Sensor
right arrow Feature 6: L:9.84 D:4.84
right arrow Flourescent Equivalent: 150W
right arrow Has Driver: Yes
right arrow HID Equivalent: 600W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 750W
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow IP Rating: IP64
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp Filament: LED
right arrow Lens: Yes
right arrow Lens Finish: Clear
right arrow Lens Material: Thermo Plastic (PBT)
right arrow Location Rating: Damp
right arrow Long Description: Satco's S39679 90-watt, HID replacement LED lamp offers natural light and an adjustable beam spread. Suitable for outdoor pole lamps, this high lumen lamp with a mogul extended base provides superior illumination. This energy efficient LED lamp deliver
right arrow Material: Aluminum / Steel / Thermo Plastic (PBT)
right arrow Minimum Compartment Size: Width: 17.30 in. Depth: 17.30 in. Height: 11.90 in.
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +65C (+149F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Photocell: Optional Add-On
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 11
right arrow RoHS Compliant: Yes
right arrow Romance Copy: The third generation of multibeam lamps offer improved efficiency, performance, and installation versatility. With an impressive 140 lumens per watt, a redesigned and more efficient heat sink, and an optional PIR motion sensor, the multibeam grabs more ene
right arrow SDS class: LED_Lamp
right arrow Short Description: 90W/LED/HID/MB-G3/50K/100-277V
right arrow Specification Notes: Closed 260 deg; Partial 150 deg; Open 120 deg
right arrow Style: Utility
right arrow Surge Protection: Built-in surge protection - 4KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: <20%
right arrow Wattage Selectable: No
right arrow Watts: 90W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Style: Traditional
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 4501-5000
