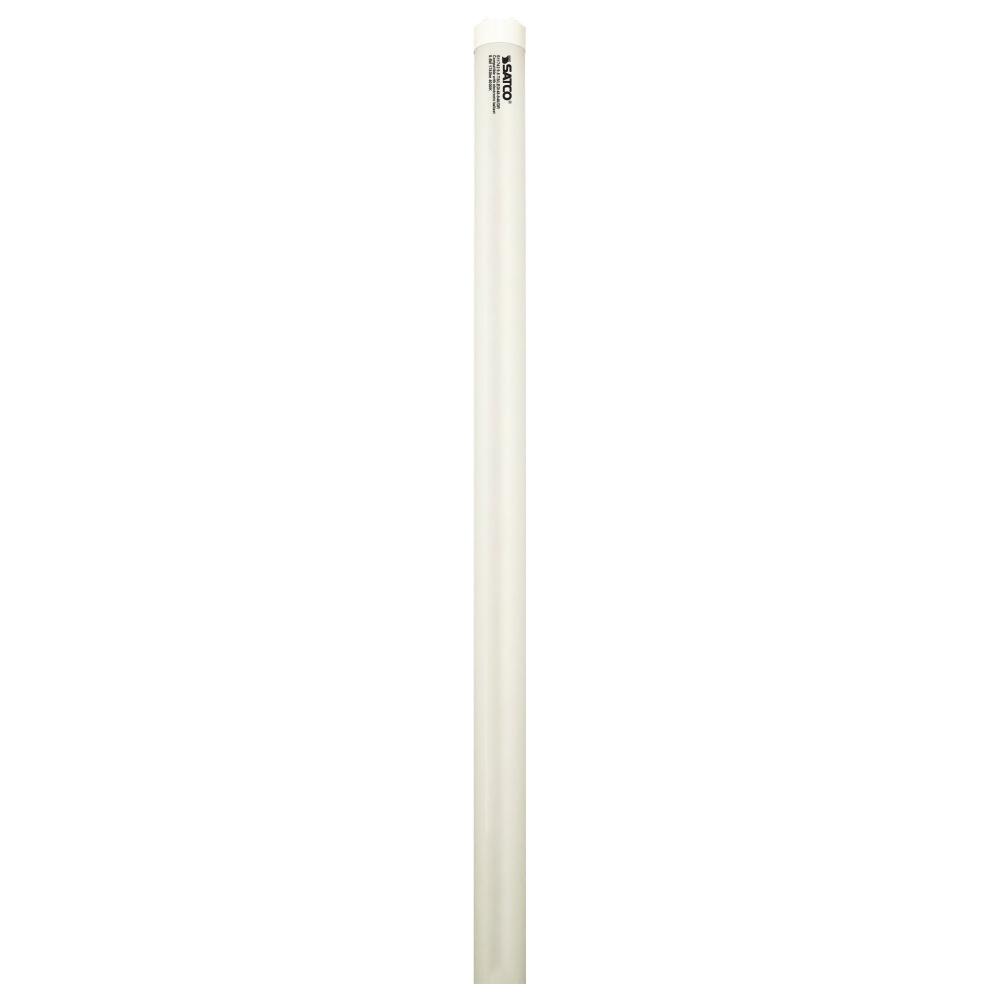

9.5 Watt; 4 Foot; T8 LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1740 Lumens; Type A; Ballast dependent
Bulb Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0051
Warranty:
5 Year Limited - T8 LED Bulbs
Ballast Bypass Direct:
Direct
Ballasting Requirements:
Ballast required. Direct Replacement-for use on Instant Start and Rapid Start ballasts with no rewiring required.May not be compatible with every ballast. Refer to the ballast compatibility chart
Burning Position:
Universal
Carton Cubic Feet:
0.0336
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Classification:
Standard
DLC Primary Use:
Replacement Lamps (plug and play) (UL Type A)
Feature 1:
Up to 183 lumens per watt (LPW)
Feature 2:
All glass tubes - no aging, yellowing, or bending
Feature 3:
Compatible with most instant start, rapid start T8 electronic ballasts
Feature 4:
Damp Location Rated
Feature 5:
DLC 5.1 certified
Feature 6:
Integrated thermal fuse at pins
Feature 7:
Operating Temperature: -20C (-4F) to a maximum of 45C (113F)
Feature 8:
Long life - Rated for 50,000 hours
Flourescent Equivalent:
32W/30W/28W/25W
Incandescent Equivalent:
75W
Lamp Ballast Type A/B/C:
Type A
Long Description:
SATCO|NUVO's S11742 9.5-watt, 4000K T8 fluorescent replacement lamp allows the fixture to maintain its original UL and CSA compliance while delivering efficient LED lighting. This lamp provides 50,000 hours of cool white light. Commercial, health care,
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Romance Copy:
SATCO|NUVO's 9.5-watt, 4000K T8 fluorescent replacement lamp allows the fixture to maintain its original UL and CSA compliance while delivering efficient LED lighting. This lamp provides 50,000 hours of cool white light. Commercial, health care, hospit
Short Description:
9.5/T8/LED/48-840/DR
Specification Notes:
Surge Protection
Total Harmonic Distortion:
20%
