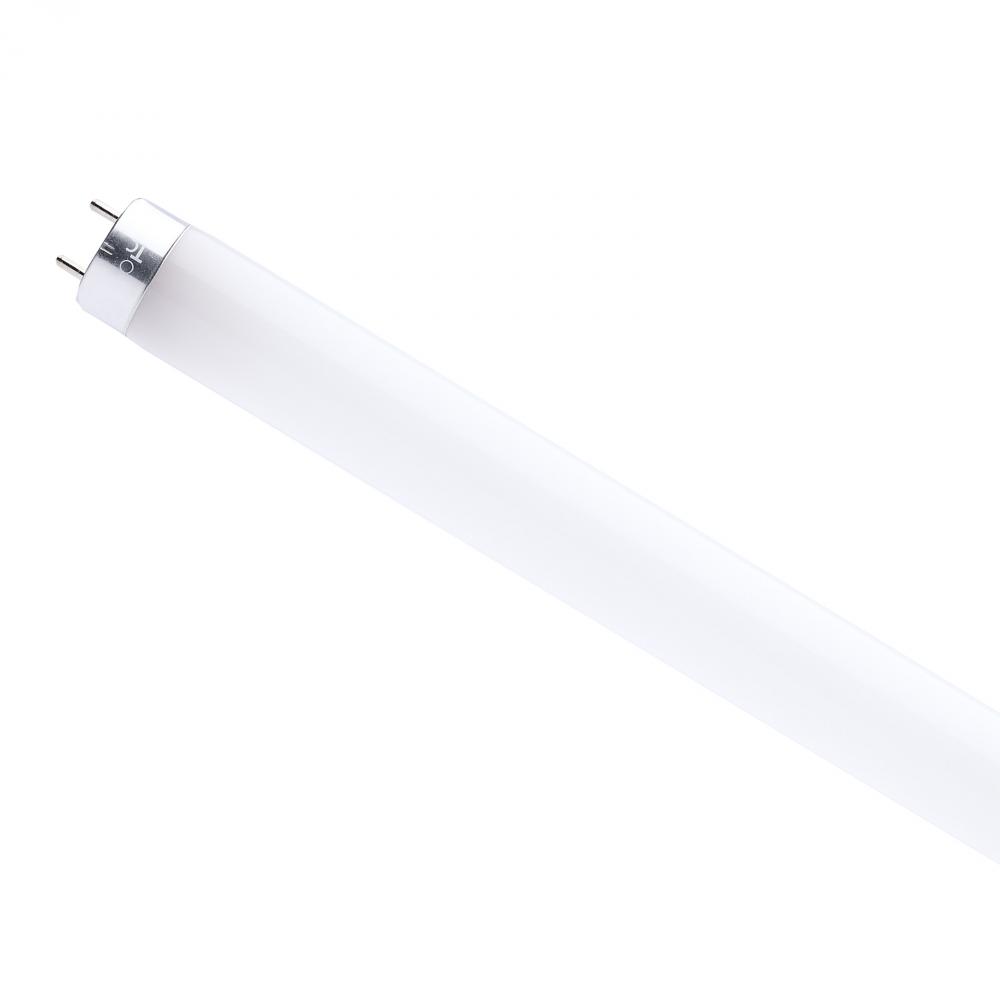

9.5 Watt; 4 Foot T8 LED; G13 Base; 3500K; Type A (X6VMP)
$8.00
Call For Price
Enlarge Image
Add to Cart
Description:
9.5 Watt; 4 Foot T8 LED; G13 Base; 3500K; Type A
Availability:
  • Manufacturer has 1492 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.10"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8
right arrow Volts: Ballast Dependent
right arrow Bulb Dimmable: Yes-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3500K
right arrow Bulb Shape: T8
right arrow Diameter: 1.1
right arrow EA Length: 48
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 47.78
right arrow Lumens: 1740L
right arrow Shap Carton Width: 1.1
right arrow Ship Carton Height: 1.1
right arrow Ship Weight: 0.43
right arrow Warranty: 5 Year Limited - T8 LED Bulbs
right arrow Weight: 0.38
right arrow Ballast Bypass Direct: Direct
right arrow Ballasting Requirements: Ballast required. Direct Replacement-for use on Instant Start and Rapid Start ballasts with no rewiring required. May not be compatible with every ballast. Refer to the ballast compatibility chart
right arrow Beam Spread: 210
right arrow Bulb ANSI Base: G13
right arrow Bulb Base: Medium Bi Pin
right arrow Bulb Finish: Gloss White
right arrow Carton Cubic Feet: 0.0336
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Neutral White
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Down To: 100 to 20 percent
right arrow Dimmable Function: Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: S-0K7BB4
right arrow DLC Primary Use: Replacement Lamps (Plug and Play) (UL Type A)
right arrow Efficacy: 183.16 LPW
right arrow Enclosed Fixture Use: Yes
right arrow FCC Compliant: Yes
right arrow Feature 1: 3500K CCT
right arrow Feature 2: Type A - Direct Replacement
right arrow Feature 3: Integrated Thermal Protection
right arrow Feature 4: Damp location rated
right arrow Feature 5: Dimmable with Select Ballasts
right arrow Feature 6: Rated for Use in Enclosed Fixtures
right arrow Feature 7: NSF Rated
right arrow Feature 8: Glass Tube
right arrow Feature 9: Double Ended Wiring
right arrow Flourescent Equivalent: 32W/30W/28W/25W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 75W
right arrow Indoor Outdoor: Indoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type A
right arrow Lamp Filament: LED
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S11741R1Type A LED T8 Lamps are a direct replacement for traditional fluorescent tubes for use in a variety of applications. Dimming capable with compatible ballasts, these lamps allow for a customized lighting experience. High-performing,
right arrow Material: Glass / Steel
right arrow Nominal Length: 48
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 25
right arrow Pack Type: Sleeve
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 12
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's Type A LED T8 Lamps are a direct replacement for traditional fluorescent tubes for use in a variety of applications. Dimming capable with compatible ballasts, these lamps allow for a customized lighting experience. High-performing, these l
right arrow SDS class: LED_Lamp
right arrow Short Description: 9.5/T8/LED/48-835/DR
right arrow Style: Utility
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 20%
right arrow Wattage Selectable: No
right arrow Watts: 9.5W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
