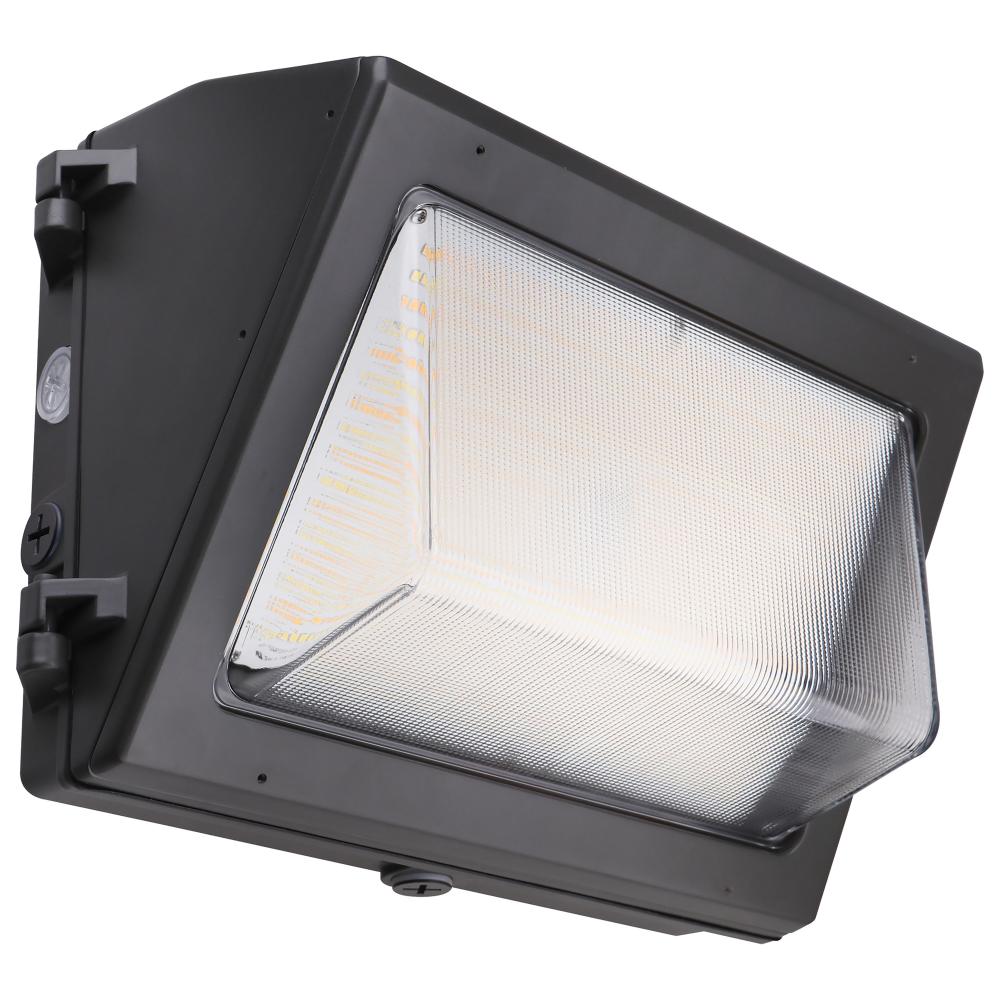

Emergency Architectural LED Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable (A39PX)
$298.00
Call For Price
Enlarge Image
Add to Cart
Description:
Emergency Architectural LED Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell; 120-277 Volt
Availability:
  • Manufacturer may be Out Of Stock.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 9.35"
right arrow Width: 13.80"
Additional Details:
right arrow Finish: Bronze
right arrow Category: Wall Pack
right arrow Sub Category: Standard
right arrow Style: Traditional
right arrow Avg Rated Hours: 50000
right arrow Bulb Shape1: Integrated LED
right arrow Bulb Type1: LED
right arrow Color Temperature: Warm to Cool White
right arrow Dimmable: Yes-Dimmable
right arrow Each Height: 9.84
right arrow Each Length: 15.63
right arrow Each Width: 11.69
right arrow Lumens: 4060L-8640L
right arrow Tariff Code: 9405.42.6000
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Amps: 0.242-0.105/0.333-0.144/0.500-0.217A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Battery Chemistry: Lithium-ion (Li-ion)
right arrow Beam Angle: 110
right arrow B_U_G_Rating: B1-U4-G5
right arrow CA Prop-65: Lead
right arrow CCT Selectable: Yes
right arrow CEC: T20 Exempt - Fixtures Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Connection: Hardwire
right arrow Country Of Origin: Vietnam
right arrow CRI: 80+
right arrow Dimmable Down To: 100 to 20 percent
right arrow Dimmable Function: 0-10V Dimming Only
right arrow DLC Classification: Premium
right arrow DLC Primary Use: Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
right arrow Each Cube: 1.0405
right arrow Each Quantity: 1
right arrow Efficacy: 140.00/158.75/144.00 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: Maintenance free - no bulb to change
right arrow Feature 10: Consistent, even light distribution
right arrow Feature 2: Integrated By-Passable Photocell
right arrow Feature 3: Built-in surge protection - 4KV
right arrow Feature 4: Wattage Selectable 29W/40W/60W
right arrow Feature 5: 50,000 Hours Long Life
right arrow Feature 6: DLC Premium
right arrow Feature 7: IP65 Rugged, All Weather Durability
right arrow Feature 8: CCT Selectable 3000K/4000K/5000K
right arrow Feature 9: Battery Mode 16W/1120 Lumens/90 min. Run Time
right arrow Finish Family: Bronze
right arrow Fixture shape: Rectangle
right arrow Has Emergency Battery: Yes
right arrow HID Equiv: 75W-175W
right arrow Incandescent Equivalent: 200W-500W
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow IOT Enabled: No
right arrow IP Rating: IP65
right arrow JA8 Compliant: No
right arrow Lens Material: Glass
right arrow Long Description: Introducing 65-754, SATCO NUVO's new CCT and Wattage selectable wall pack with integrated bypassable photocell and emergency battery backup. This cULus certified wall pack is offered in a traditional style with 29W/40W/60W wattage configurations, CCT s
right arrow Material: Die-Cast Aluminum
right arrow Mounting Procedure: Wall
right arrow Operating Temp: -40C (-40F) to +50C (+122F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Photocell: Yes - Bypassable
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: Introducing SATCO NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells and emergency battery backup modes. These cULus certified wall packs are offered in both a traditional and semi-cutoff style in two wattage config
right arrow Safety Listing: cULus - Certified
right arrow SDS class: LED_Fixture
right arrow Short Description: EM WALL PACK CCT & WATT ADJ
right arrow Temperature (CCT): 3000K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: <20%
right arrow Wattage Selectable: Yes
right arrow Weight Lb.: 9.5
right arrow Standard Category: Exterior , Sconces
right arrow Standard Subcategory: Wall Lights , Outdoor Wall Lights
right arrow Standard Finish: Bronze
right arrow Standard Style: Traditional
right arrow Standard Option: LED , Prop 65 prop65.png
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 4001-4500
