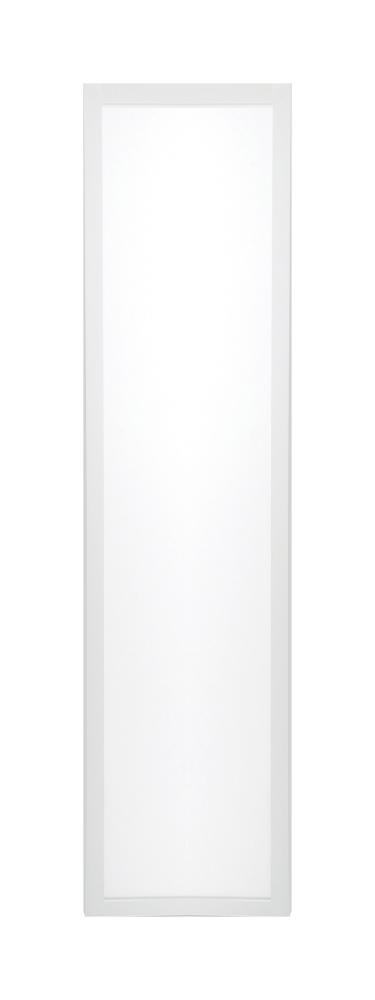

LED Backlit Flat Panel; 40 Watt; 1 ft. x 4 ft.; Selectable CCT; 100-277 Volt (A38QU)
$74.00
Call For Price
Enlarge Image
Description:
LED Backlit Flat Panel; 40 Watt; 1 ft. x 4 ft.; Selectable CCT; 100-277 Volt
Availability:
  • Manufacturer may be Out Of Stock.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 1.50"
right arrow Width: 11.84"
Additional Details:
right arrow Finish: White
right arrow Category: Flat Panel
right arrow Sub Category: Backlit
right arrow Style: Utility
right arrow Avg Rated Hours: 50000
right arrow Bulb Shape1: Integrated LED
right arrow Bulb Type1: LED
right arrow Color Temperature: Warm to Cool White
right arrow Dimmable: Yes-Dimmable
right arrow Each Height: 49.02
right arrow Each Length: 2.56
right arrow Each Width: 13.39
right arrow Length: 47.72
right arrow Lumens: 4400L-4600L
right arrow Tariff Code: 9405.11.6020
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Wire Length: 3.54
right arrow Air Tight: No
right arrow Amps: 0.400-0.144A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Beam Angle: 120
right arrow CA Prop-65: Lead
right arrow CCT Selectable: Yes
right arrow CEC: T20 Exempt - Fixtures Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Connection: Hardwire
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Down To: 100 to 20 percent
right arrow Dimmable Function: 0-10V Dimming Only
right arrow DLC Classification: Standard
right arrow DLC Primary Use: 1x4 Luminaires for Ambient Lighting of Interior Commercial Spaces
right arrow Each Cube: 0.9724
right arrow Each Quantity: 1
right arrow Efficacy: 110.00/112.50/115.00 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: 0-10 volt dimming
right arrow Feature 2: 80 CRI
right arrow Feature 3: Damp location rated
right arrow Feature 4: 50,000 average rated hours of use
right arrow Feature 5: Suspension kit available
right arrow Feature 6: Surface mount frame kit available
right arrow Feature 7: Drop ceiling installation (T-bar grid)
right arrow Finish Family: White
right arrow Fixture shape: Rectangle
right arrow Flicker Free: Yes
right arrow IC Rated: Yes
right arrow Incandescent Equivalent: 200W
right arrow Indoor Outdoor: Indoor
right arrow IP Rating: IP20
right arrow JA8 Compliant: No
right arrow Lens Finish: Frost
right arrow Lens Material: Poly methyl methacrylate (PMMA)
right arrow Long Description: SATCO NUVO's 65-573 LED-backlit panel with ColorQuick technology is a versatile lighting fixture. Through advanced manufacturing, even light distribution is achieved at an even greater cost savings. Satco's ColorQuick and PowerQuick technologies al
right arrow Material: Aluminum / Steel
right arrow Mounting Procedure: Ceiling
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -17C (+1.4F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Panel Size: 1x4
right arrow Photocell: No Photocell
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 17
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's LED-backlit panel with ColorQuick technology is a versatile lighting fixture. Through advanced manufacturing, even light distribution is achieved at an even greater cost savings. Satco's ColorQuick and PowerQuick technologies allow for
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Fixture
right arrow Short Description: 1X4 LED BACKLIT FLAT PANEL
right arrow Temperature (CCT): 3500K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 13.80%
right arrow Wattage Selectable: No
right arrow Weight Lb.: 4.98
right arrow Wire Gauge: 14
right arrow Wire Temp Rating: 80C (176F)
right arrow Standard Category: Specialty Items
right arrow Standard Subcategory: Lighting Accessories
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Option: LED , Prop 65 prop65.png
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 4001-4500
