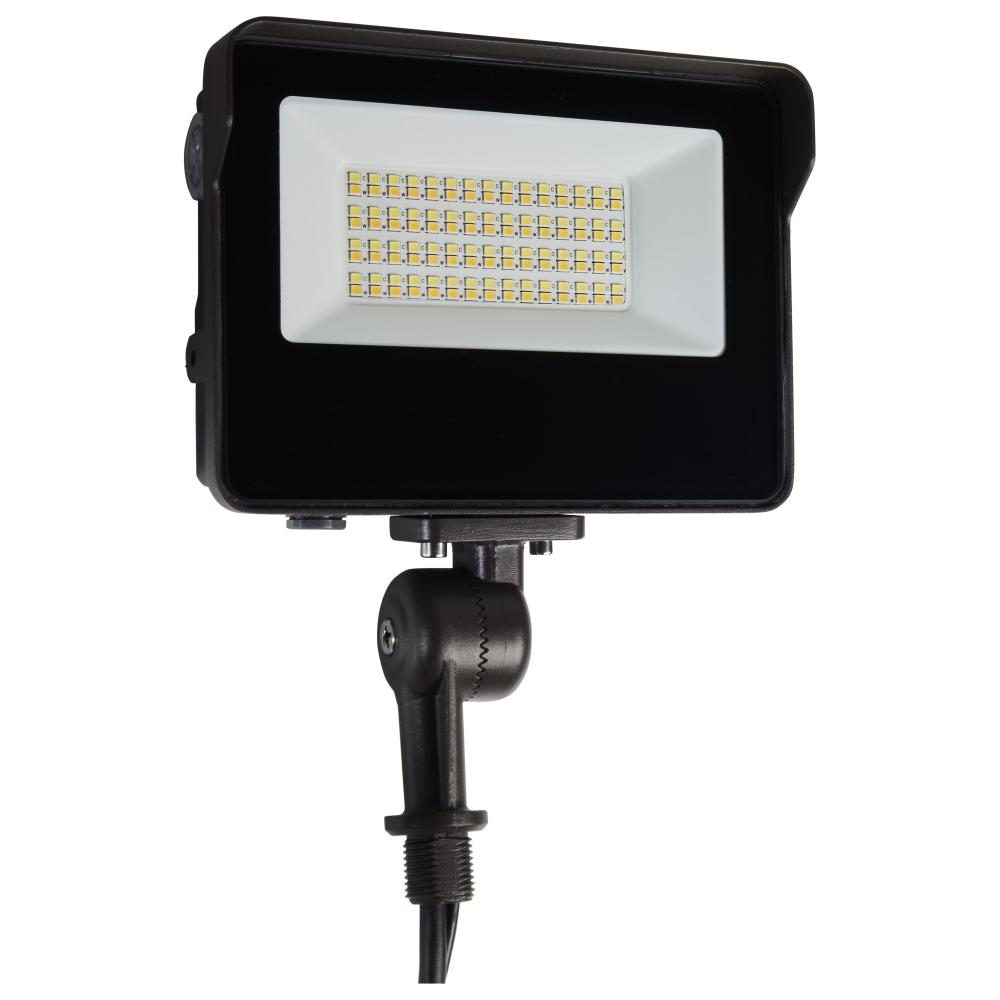

LED Tempered Glass Flood Light with Bypassable Photocell; CCT Selectable 3K/4K/5K; Wattage (A69EN)
$104.00
Call For Price
Enlarge Image
Add to Cart
Description:
LED Tempered Glass Flood Light with Bypassable Photocell; CCT Selectable 3K/4K/5K; Wattage Adjustable 15W/25W/35W; ColorQuick and PowerQuick Technology; Bronze Finish
Availability:
  • Manufacturer has 228 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 2.44"
right arrow Width: 9.91"
Additional Details:
right arrow Finish: Bronze
right arrow Category: Outdoor
right arrow Sub Category: Flood Light
right arrow Style: Utility
right arrow Avg Rated Hours: 50000
right arrow Bulb Shape1: Integrated LED
right arrow Bulb Type1: LED
right arrow Color Temperature: Warm to Cool White
right arrow Dimmable: Yes-Dimmable
right arrow Each Height: 11.14
right arrow Each Length: 7.7
right arrow Each Width: 4.92
right arrow Height Max: 9.94
right arrow Length: 7.24
right arrow Lumens: 1800L-4900L
right arrow Tariff Code: 9405.42.6000
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Amps: 0.125-0.043/0.208-0.072/0.292-0.101A
right arrow ANSI Base: Integrated
right arrow Beam Angle: 150x135
right arrow B_U_G_Rating: B2-U1-G0
right arrow CA Prop-65: Lead
right arrow CCT Selectable: Yes
right arrow CEC: T20 Exempt - Fixtures Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Down To: 100 to 20 percent
right arrow Dimmable Function: 0-10V Dimming Only
right arrow DLC Classification: Premium
right arrow DLC Primary Use: Architectural Flood and Spot Luminaires
right arrow Each Cube: 0.2442
right arrow Each Quantity: 1
right arrow Efficacy: 120.00/134.00/140.00 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: 3000K/4000K/5000K CCT Selectable
right arrow Feature 2: 15W/25W/35W Wattage Selectable
right arrow Feature 3: Integrated bypassable Photocell and 4KV Surge Protection
right arrow Feature 4: Tempered Glass
right arrow Feature 5: 0-10V Dimmable
right arrow Feature 6: IP66
right arrow Feature 7: 50,000 Hours
right arrow Feature 8: NEMA Distribution: 7V X 7H
right arrow Feature 9: Suggested Applications: Commercial/Industrial, General Site Lighting, Landscape, Sign Illumination, Pathway/Walkway
right arrow Finish Family: Bronze
right arrow Has Driver: Yes
right arrow HID Equiv: 100W-150W
right arrow Impact Rating (IK): IK07
right arrow Incandescent Equivalent: 100W-150W
right arrow Indoor Outdoor: Outdoor
right arrow Installation Notes: Height will change with different mounting options.
right arrow IOT Enabled: No
right arrow IP Rating: IP66
right arrow JA8 Compliant: No
right arrow Lens Finish: Clear
right arrow Lens Material: Tempered Glass
right arrow Long Description: SATCO NUVO's 65-541 LED Tempered Glass Flood Light is both 3K/4K/5K CCT selectable and 15W/25W/35W wattage selectable, allowing you to visualize and customize any environment. The fixture is IP66 rated to withstand harsh weather conditions, and the hig
right arrow Material: Die-Cast Aluminum
right arrow Mounting Procedure: Ceiling/Wall
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -30C (-22F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Photocell: Has Photocell
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's LED Tempered Glass Flood Lights are CCT and wattage selectable allowing you to visualize and customize any environment. These fixtures are IP66 rated to withstand harsh weather conditions, and the highly durable tempered glass offers bette
right arrow Safety Listing: cULus - Certified
right arrow SDS class: LED_Fixture
right arrow Short Description: LED WATT/CCT SELECTABLE FLOOD
right arrow Specification Notes: NEMA Distribution: 7V x 7H
right arrow Temperature (CCT): 3000K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 20%
right arrow Wattage Selectable: Yes
right arrow Weight Lb.: 1.14
right arrow Standard Category: Utility
right arrow Standard Subcategory: Flood Lights
right arrow Standard Option: LED , Prop 65 prop65.png
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 4001-4500
