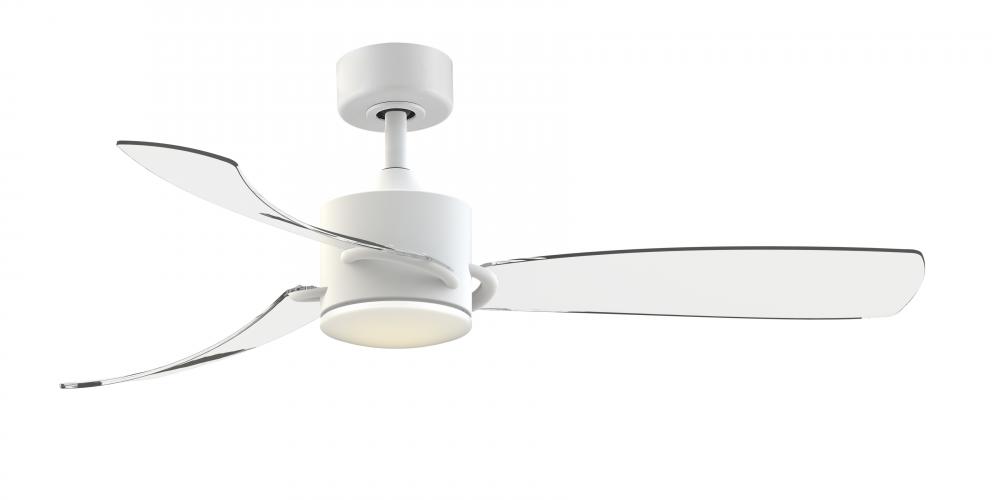

SculptAire - 52 inch - MW with LED Light (K8VC)

Image may not reflect selected features

No Image
Available

SculptAire - 52 inch - MW with LED Light

BASE PRICE:

533

/ / 1

($533.00 / 1)

WAS

Call for Price

Item #:

K8VC

Dimensions:

Height: 13.88"

Width: 52.00"

Length: 52.00"

Availability:

Manufacturer has 184 items available.

Energy Information at High Speed

Airflow:

4663 Cubic Feet per Minute

Electricity Rate:

58 Watts (excluded lights)

Airflow Efficiency:

80 Cubic Feet Per Minute Per Watt

Recommended Items

Description

Details

Downloads

Whether you choose a Black, Chrome, Brushed Satin Brass, or Matte White finish, the clear blades on SculptAire will keep you looking and feeling cool. This 52 inch fan has a 3 speed AC motor and comes with an 18 watt LED light kit and cover. *Brushed Satin Brass and Chrome finishes are Dry Rated for indoor use; while the Black and Matte White finishes are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Style:

Transitional

Option:

Damp Rated , Dry Rated

Voltage:

10-99

Lumens:

1101-1600

Number of Blades:

3 Blades

Location Rating:

Dry Rated

Wattage:

18w

Category:

Fan-Uni

Finish:

Matte White

Option:

Damp

Family:

Sculptaire

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features , 4663 CFM on High , Limited Lifetime Warranty , Set of (3) 52 inch clear blades and 18 watt LED light kit with cover and bulb included , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

4663

Air Flow Efficiency:

Amperage:

0.48

Blade Finish:

Clear

Blade Pitch:

Bulb Type:

18 Watt LED Module

Canopy:

5.75 Dia x 2.57 H

Diameter:

7.48

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

Light Kit Included:

Yes

Lumens / Light Output:

1500

Motor Fan Speed:

Motor RPM:

130

Motor Size:

153 x 20

Motor Type:

Remote Control Included:

TR500

Ship Carton Height:

Ship Carton Length:

25.98

Ship Carton Width:

11.93

Ship Weight:

21.61

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

18.11

Airflow Efficiency Low:

147

Airflow Efficiency Medium:

105

Avg Airflow Efficiency:

101

Avg CFM Energy:

3868

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Injected

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Bulb Wattage:

Canopy Diameter:

5.75 Dia

Canopy Height:

2.57 H

Cap Included:

Yes

Carton Cubic Feet:

1.79

Cartons Per Unit:

Case Height:

Case Length:

25.98

Case Quantity:

Case Weight Pounds:

21.61

Case Width:

11.93

CEC Uploaded:

Yes

Ceiling To Blade Edge:

11.83

Ceiling To Bottom:

13.88

CFM Low:

1980

CFM Medium:

3276

Compatible Accessories:

CCK8002MW, DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCB1-52

Compatible Controls:

BTCR9, BTR9, CRL4WH, WFR50

Compatible Wall Controls:

CWRL4LA, CWRL4WH, WC2WH, WR501WH

Country of Origin:

China

CRI:

Current Draw High:

0.48

Current Draw Low:

0.23

Current Draw Medium:

0.35

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

7.48

Included Control:

TR500

Included Control Type:

Handheld

Leadwire:

Light Kit Energy Star:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High (VI):

130

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Watts Per Bulb:

Additional Information:

3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
4663 Cfm On High
Limited Lifetime Warranty
Set Of (3) 52 Inch Clear Blades And 18 Watt Led Light Kit With Cover And Bulb Included
Tr500 Handheld Remote With 23a Battery Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
